Researchers at the University of Nottingham’s Centre for Additive Manufacturing (CfAM), in collaboration with The Manufacturing Technology Centre (MTC) and Autodesk Research, have analyzed how interface orientation affects defect formation and microstructure evolution in laser powder bed fusion (LPBF) of IN718 and GRCop-42. Published in Additive Manufacturing Letters, the study evaluates horizontal, vertical, and angled interfaces to determine how deposition sequence and recoating direction influence alloy mixing and phase formation in aerospace-relevant bimetallic parts.
The work focuses on components such as rocket combustion chambers, where IN718 provides high-temperature strength and GRCop-42, a Cu-Cr-Nb alloy developed by NASA, enhances heat dissipation.
Multi-material LPBF using selective powder deposition
To produce the bimetallic samples, the researchers used an AconityMIDI+ LPBF system equipped with a 1 kW continuous wave ytterbium fibre laser (80 μm spot diameter) and a Schaeffler Aerosint selective powder deposition (SPD) recoater. The SPD system enables spatially controlled multi-material deposition in a single recoating pass, allowing different powders to be placed in defined regions of each layer.
Samples were fabricated with horizontal interfaces, vertical interfaces, and 45° angled transitions between IN718 and GRCop-42. For each geometry, both deposition sequences were tested. In some builds, IN718 was deposited onto GRCop-42; in others, the order was reversed. The recoating direction was also varied relative to the interface plane to assess how powder spreading affected alloy distribution and interfacial microstructure.
Deposition sequence influences horizontal interface defects
For horizontal interfaces, deposition order proved critical. When IN718 was deposited onto GRCop-42, lack-of-fusion (LoF) defects formed at the interface. Backscatter imaging revealed unmelted IN718 particles. The authors attribute this behavior to the high thermal conductivity of the copper alloy substrate, which dissipates heat rapidly and reduces melt pool temperature. Increasing laser power during the first few IN718 layers mitigated these defects.
Reversing the sequence altered the outcome. Depositing GRCop-42 onto IN718 did not generate LoF defects. Instead, significant alloy mixing occurred at the interface. X-ray diffraction indicated a small additional peak near the interface consistent with a body-centered cubic α-Cr phase in copper-rich regions above the transition line, while electron backscatter diffraction (EBSD) revealed grain refinement and evidence of epitaxial growth.
Recoating direction affects vertical and angled interfaces
For vertical and angled interfaces, the orientation of the interface relative to the recoating direction played a critical role.
When the interface plane was perpendicular to the recoating direction, significant crossing of the first-deposited material into the second region occurred. In some cases, porosity associated with powder deposition irregularities was observed, distinct from the thermal conductivity-driven LoF defects observed in horizontal interfaces.
When the interface plane was aligned parallel to the recoating direction, a gradual compositional transition developed across the interface. The authors suggest that this gradient effect may help reduce stress concentrations caused by thermal mismatch between the alloys.
Microstructural evolution at the interface
Microstructural analysis revealed clear differences based on mixing behavior. Regions with significant Ni contamination in Cu-rich areas exhibited columnar-to-equiaxed grain transitions and localized grain refinement, with finer grains located in the Cu-rich regions and coarser equiaxed grains in the Ni-rich regions of the interface. In samples with sharper compositional boundaries, columnar dendritic structures were retained.
Overall, the study demonstrates that interface orientation relative to both build direction and recoating direction directly influences alloy mixing, phase evolution, and defect formation in IN718/GRCop-42 bimetallic LPBF structures.
While the authors show that defect-free interfaces are feasible under certain configurations, they note that further tensile and fatigue testing is required to determine how orientation-driven microstructural differences affect mechanical performance under thermal cycling.
Interface reliability remains a key barrier in multi-metal additive manufacturing
Recent research initiatives have similarly focused on the challenge of joining dissimilar metals for extreme environments. A UK-led program exploring additive manufacturing methods for fusion energy materials is investigating how metals such as tungsten and copper can be combined to withstand severe thermal gradients. Like the Nottingham study, this work reflects a broader technical constraint: while multi-metal systems promise tailored thermal and mechanical performance, reliable control of the interfacial microstructure remains a critical barrier to deployment in high-temperature applications.
Advances in hardware are also expanding multi-material capabilities. Researchers at ETH Zurich recently demonstrated a high-speed multi-material powder bed fusion system designed to improve material placement efficiency. Yet machine capability alone does not resolve metallurgical complexity. As the Nottingham findings suggest, deposition sequence, recoating direction, and interface orientation can significantly alter mixing behavior and defect formation, indicating that process–structure understanding will be as essential as hardware innovation for aerospace and other extreme-environment applications.
The 3D Printing Industry Awards are back. Make your nominations now.
Do you operate a 3D printing start-up? Reach readers, potential investors, and customers with the 3D Printing Industry Start-up of Year competition.
To stay up to date with the latest 3D printing news, don’t forget to subscribe to the 3D Printing Industry newsletter or follow us on LinkedIn.
While you’re here, why not subscribe to our Youtube channel? Featuring discussion, debriefs, video shorts, and webinar replays.

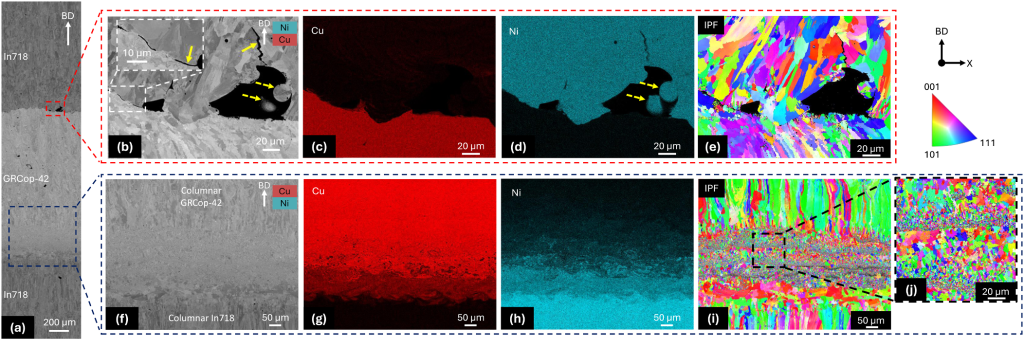

Featured image shows backscatter and compositional analysis of horizontal IN718/GRCop-42 interfaces showing lack-of-fusion defects and grain refinement behavior. Image via Bulloch et al., Additive Manufacturing Letters.
